FTA (Fault Tree Analysis) is a top-down methodology that systematically analyzes and breaks down the causes of system failures into logical elements until the root causes are identified.
It allows systematic and effective analysis of product failures, design errors, and potential accident causes to determine their impacts and relationships.
VisualPro FTA Feature Overview

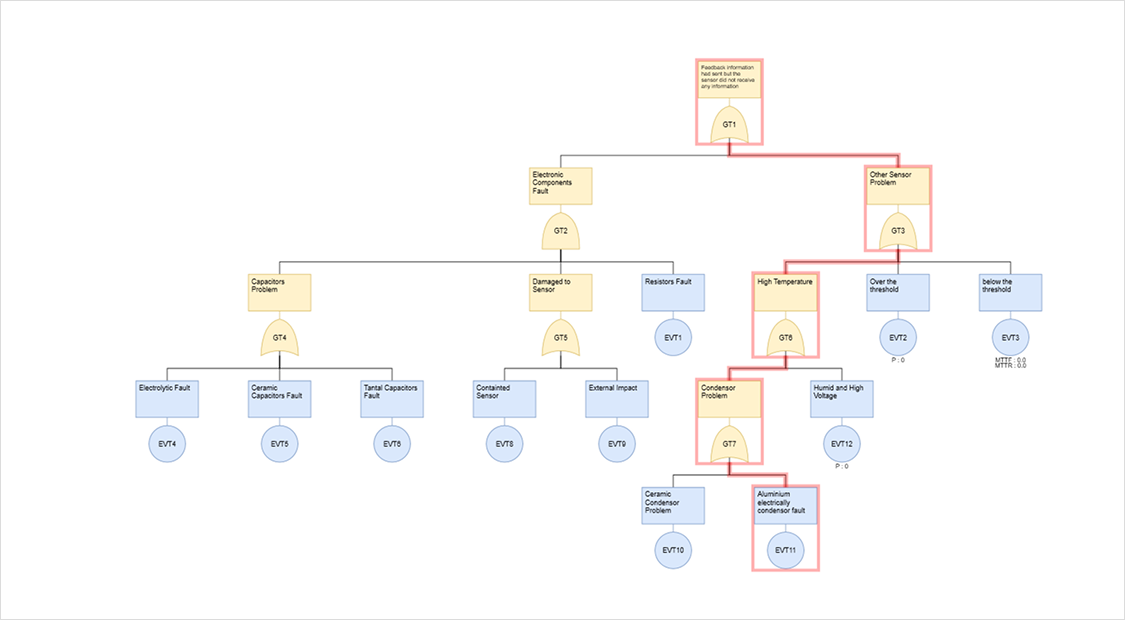

1. Supports fault tree calculations.

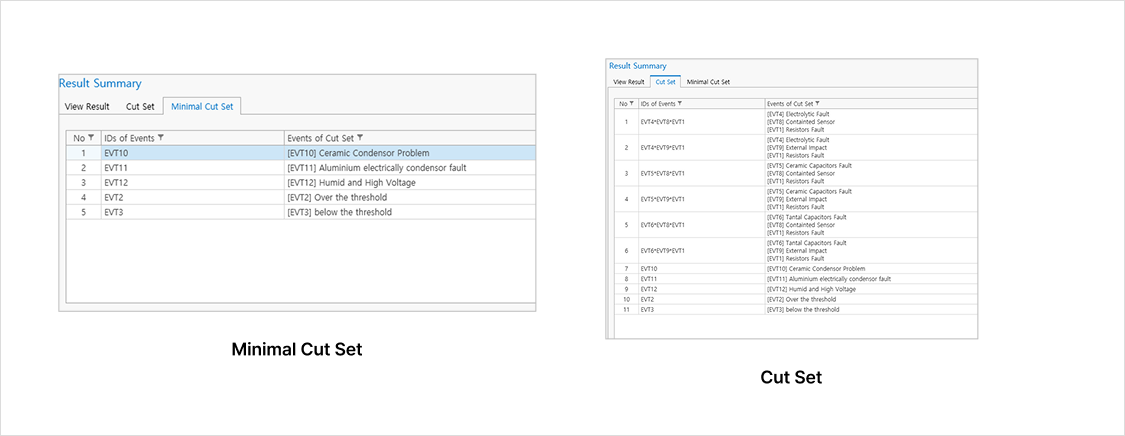

2. Supports cut-set calculation and path verification.
3. Alignment with SN 29500 & IEC 62380 (supports part-based search).
4. Provides a variety of convenience functions for FTA users.
FTA (Fault Tree Analysis) is a top-down methodology that systematically analyzes and breaks down the causes of system failures into logical elements until the root causes are identified.
It allows systematic and effective analysis of product failures, design errors, and potential accident causes to determine their impacts and relationships.
VisualPro FTA Feature Overview
1. Supports fault tree calculations.
2. Supports cut-set calculation and path verification.
3. Alignment with SN 29500 & IEC 62380 (supports part-based search)
4. Provides a variety of convenience functions for FTA users.
Gate Image Extraction
Synchronize gate structures using reference gates
PMHF Value Calculation
Supports PMHF calculation for functional safety
Reference Gates
Synchronize gate structures using reference gates
Top Gate Move/Copy
Supports moving and copying of top-level gates
Gate Search
Provides search functions for complex gate structures
Structure Export/Import
Export and import of gate structures to combine and reuse gates
